Flow Cytometry is widely used in the bio-optic, medical, energy, agriculture, among other fields. The optical components used in flow cytometry mainly consist of bandpass filters and dichroic filters.

We are qualified to offer high-quality optical components for different types of flow cytometry equipment.

The followings are classical solutions for flow cytometry optical systems.

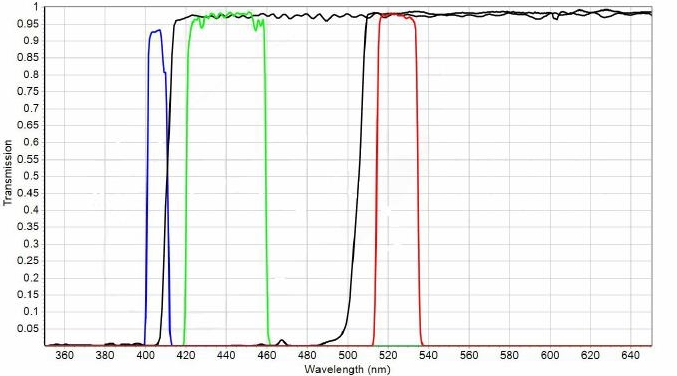

     405 nm Laser Excitation

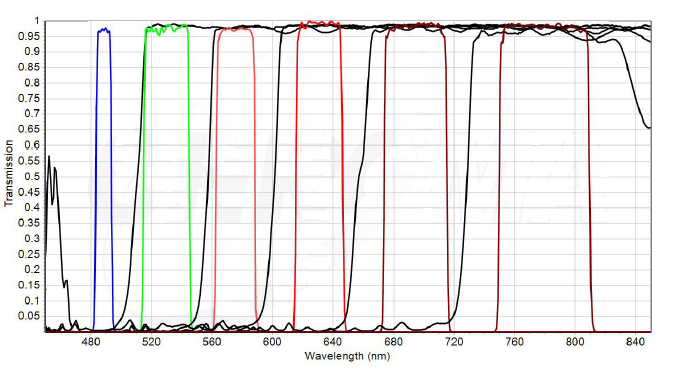

     488 nm Laser Excitation

Lasers or dyes	Bandpass Filters	Dichroics
488nm laser clean-up filter	BP-488/10-D25
Alexa Flour@488,FITC	BP-530/30-D25	LP-510/00-D25
PE	BP-577/25-D25	LP-556/00-D25
PE-Texas Red or BD Horizon PE-CF594	BP-630/30-D25	LP-600/00-D25
PerCP-Cy5.5	BP-695/40-D25	LP-660/00-D25
PE-Cy7	BP-780/60-D25	LP-730/00-D25



  .

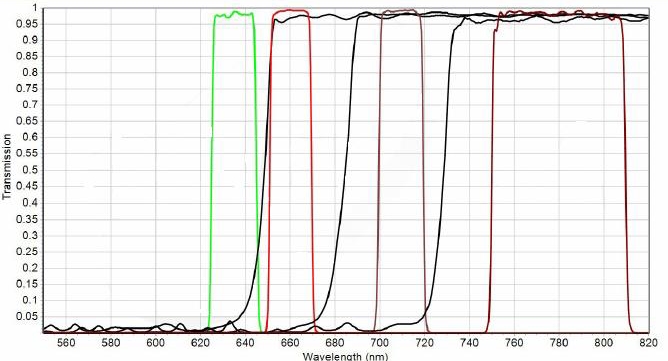

     633nm Laser Excitation

Lasers or dyes	Bandpass Filters	Dichroics
633nm laser clean-up filter	BP-635/20-D25
APC	BP-660/20-D25	LP-647/00-D25
Alexa Flour 680 or 700	BP-720/20-D25	LP-685/00-D25
APC-Cy7 or APC-H7	BP-780/60-D25	LP-730/00-D25
