Beamsplitters

Non-Polarizing Beamsplitter Cube

Compared with beamsplitter plate, Non-polarizing beamsplitter cube has the following advantages:
Identical path lengths for both the reflected and the transmitted beams

The transmitted beam is neither displaced nor deflected.

Stable and compact.

Easy operation

Easy to Mount/Align

The smallest size we can supply is 0.8x0.8x0.8mm.




Characteristic

Material: N-BK7 Grade A Optical Glass

Beamsplitter Coating for: 400 - 700nm, 700 - 1100nm, 1100 - 1600nm, etc

Split Ratio(R:T): 10:90, 30:70, 50:50, 70:30, or 90:10, etc

AR-coatings: on all input and output faces


General Specifications:


Cube Size

5mm , 10mm , 12.7 mm , 20 mm , 25.4 mm, upon request

Wavelength Range

400 - 700 nm

700 -1100 nm

Other range available

Material

N-BK7

Split Ratio(R:T)

50:50

 Other ratio available

Reflected Beam Deviation

90° ± 5 arcmin

AR-Coating Reflection

Ravg <0.5% @ 0 degree AOI  all input and output face

Overall Performance of

50:50 Split Ratio

Tabs= 47 ± 10%, Rabs= 47 ± 10%,

 Tabs + Rabs > 90%
|Ts - Tp| < 10% and |Rs - Rp| < 10%

Tabs = 47 ± 10%, Rabs = 47 ± 10%,

Tabs + Rabs > 90%,
|Ts - Tp| < 10% and |Rs - Rp| < 10%

Dimension Tolerance

+/- 0.2mm

Surface Quality

40-20 scratch and dig

Surface Flatness

λ/4  up to  λ/ 8 @ 633 nm

Wavefront Distortion Error

< λ/4 @ 633 nm

Clear Aperture

>80% of Entrance Face

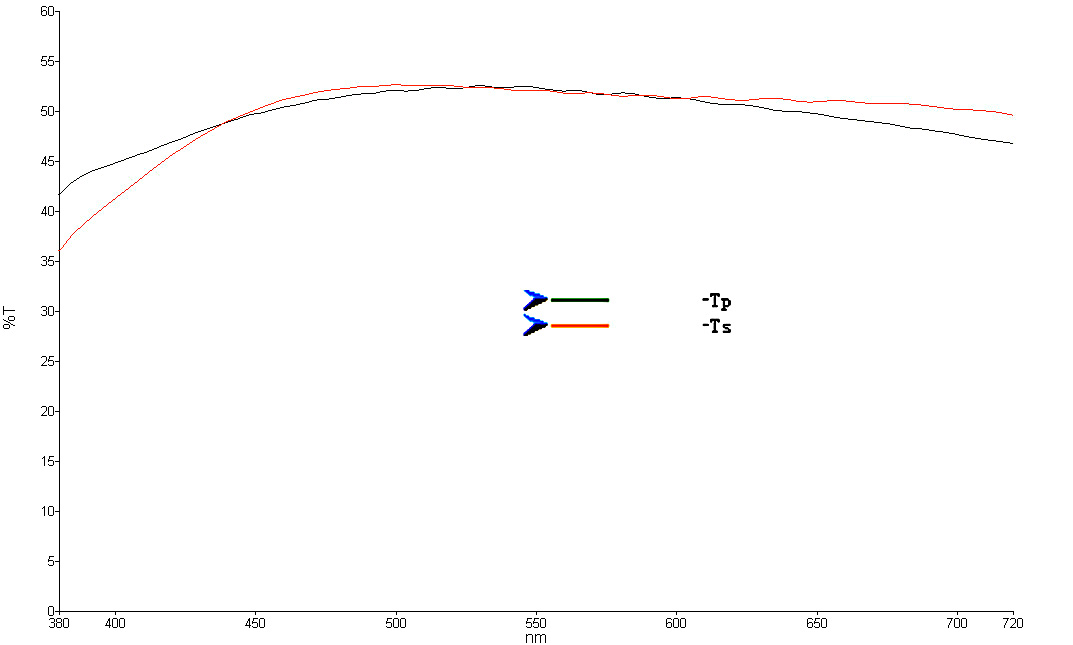

                                                        50:50 Visible 400-700nm Beamsplitter cube

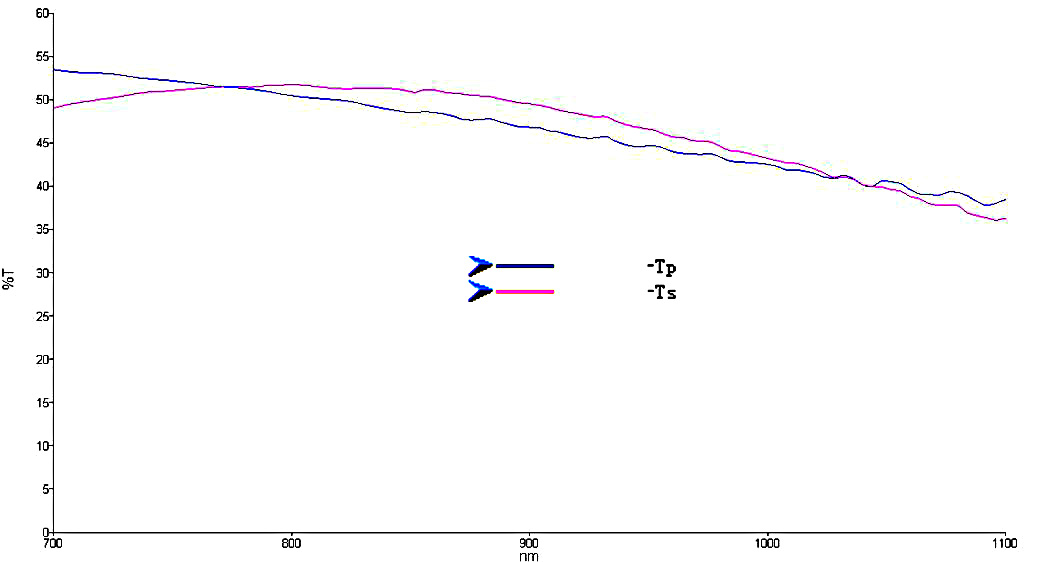

                                                     50:50 NIR 700-1100nm Beamsplitter cube
