Filters

Dichroic Filters

With special designed multi layer dielectric coating, the mirror reflects stated color

while transmitting other wavelength at the same time.

Dichroic mirror can be used to splitter or conbine different wavelength.

Dichroic mirror can be also used in SHG laser system as Harmanic Separators.


Common Specifications:


Substrate Material: BK7 or Fused silica
Flatness: λ/4 commonly, λ/10 for laser application
Surface quality: 20-10 (subatrate for laser application), 60-40 commonly
Parallelism: < 1 arc minute
Clear aperture: >85%
Protective chamfer
Front side dichroic coated
Back side AR coated for transmitting wavelength

Coating example for Laser SHG 1064-->532nm application:
S1: HR R>99.5%@1064nm & HT T>90%@532nm, S2: AR R<0.25%@532nm, AOI=0deg.
S1: HR R>99.5%@532nm & HT T>90%@1064nm, S2: AR R<0.25%@1064nm, AOI=0deg.

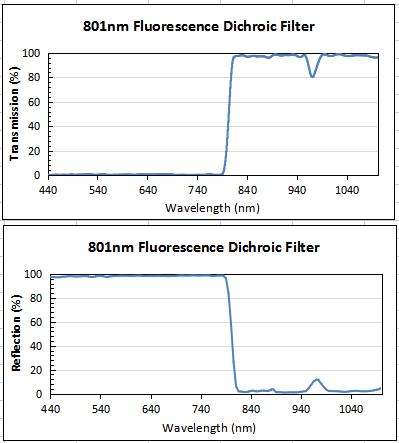

Technical Information for reference:
