Coatings

Partial Reflection Coatings

Partial Reflection coating for Narrow Band

Provide 50% reflection and transmission at an angle of 45° incidence for a single wavelength. Perfect for beamsplitters application.   Transmission/reflection (T/R) ratio of 20/80, or others for Beamsplitter is available upon request.

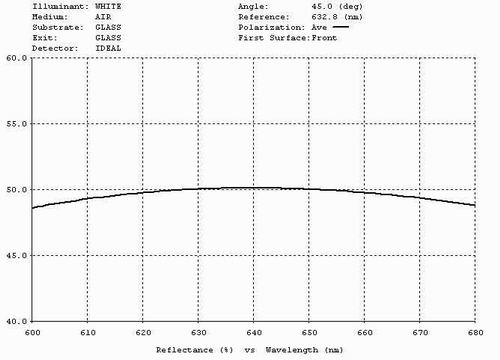

                             Single wavelength PR R=50%+/-2%@632.8nm, 45deg. incidence




                                                       PR R =90% +/-1%@1064nm, AOI= 0 deg.


Particial Reflection Coating for Broadband
Over a wide bandwidth provides 50% reflection and transmission. Tempotec can also provide coatings with different R/T ratios at and specific angle of incident.



                                  Broadband PR R=50%+/-5%@450~700nm, 45deg. incidence


Other wavelengths, incident angles and R/T ratios are also available.
