Polarizers/Depolarizer

Depolarizer

Plane polarized beam is not welcomed in some circumstances such as reflecting spectrometer. A depolarizer will change the plane polarization into a mix of polarization states by scrambling up the polarization, the result is to change plane polarized beam into pseudo-depolarized beam and produce depolarization. Depolarizer is widely used in polarization sensitive instrument.


Specifications:

Material

Quartz

Dimension Tolerance

+/-0.1mm

Thickness Tolerance

±0.05mm

Surface Quality

60/40

Clear Aperture

>90%

Flatness

<λ/2@632.8nm

Coating(with IAD coating)

AR/AR Tavg>99%

Wavelength range

440-650nm  or  requested

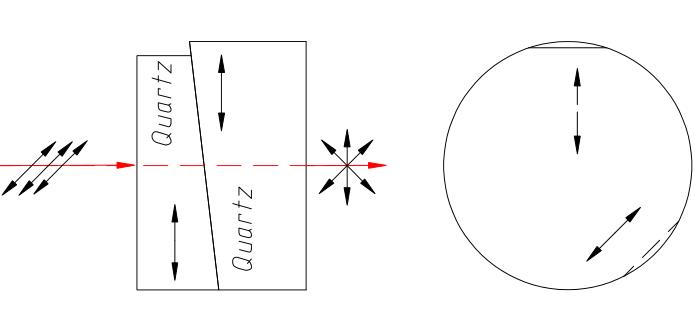

Wedge Depolarizer Diagram
