Beamsplitters

Array Beamsplitter

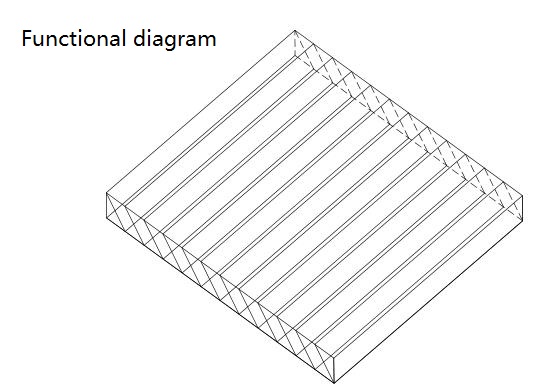

Array Polarization Beamsplitter Design





Characteristic:

.Transmitted Beam Extinction Ratio: >1000:1

. Wavelength Ranges: 430nm-680nm, or upon request

. Large Field View: +/-5 degrees AOI

. Dimension: upon request







Array NPB Beamformer Design




Non-polarizing beamsplitter ratios by layer:

Beamsplitter surfaces(R:T)                                             AR Coat, S13, S14:

S1, S2:   08:92

S3, S4:   10:90

S5, S6:   12:88

S7:          16:84

S8:          20:80

S9:          24:76

S10:        30:70

S11:        50:50

S12:        100:0



 Other Characteristic:

The structure, wavelength, split ratio are based on customer's requirements.
