Coatings

High Reflection Coatings

Dielectric High Reflective Coatings

Provide high reflectance over a broad bandwidth, and is ideal for a tunable laser or in white light applications.




                                                           HR@325nm  R>99%, AOI=0deg.

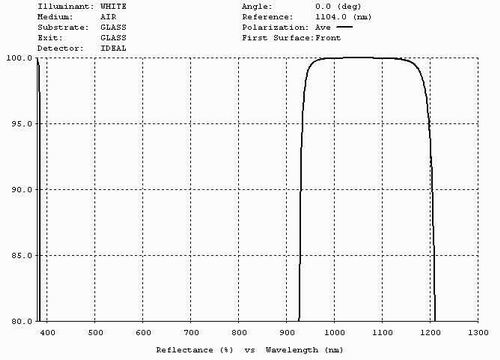

                         Dielectric HR coaitng R>99.8%@1064nm, 0deg. incidence

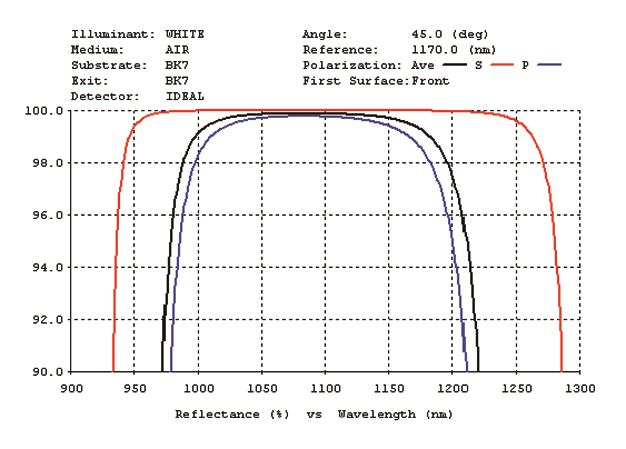

                                                HR @1064nm  Rs&Rp>99.5%, AOI=45deg.



Metallic High Reflective Coatings

Metallic coatings have low peak reflectance, mechanical durability and damage threshold, but they have extremely broadband and low cost. They are insensitivity to angle of incident light and polarization.   Please refer to Metallic High Reflective Coatings category for metal coated mirrors.

 http://www.tempotec.com/products.aspx?id=18


Other wavelength and incident angle are also available.
