Coatings

Filter Coatings


Tempotec can provide different kinds of filter coatings, upon your request.  Sample Curves as followings:

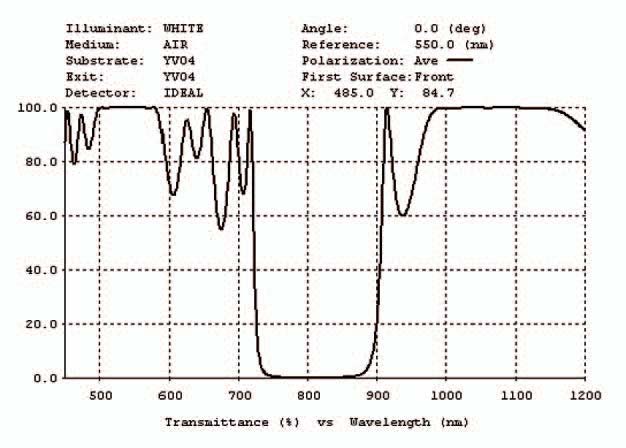

                                             HT@532nm&1064nm HR@808nm,AOI=0deg.

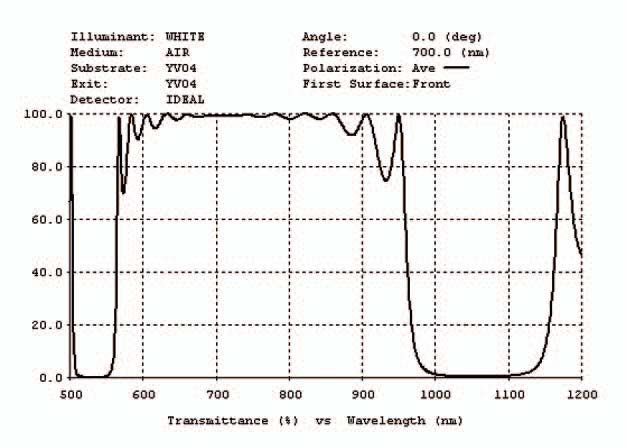

                                               HR@532nm&1064nm HT@808nm,AOI=0deg.

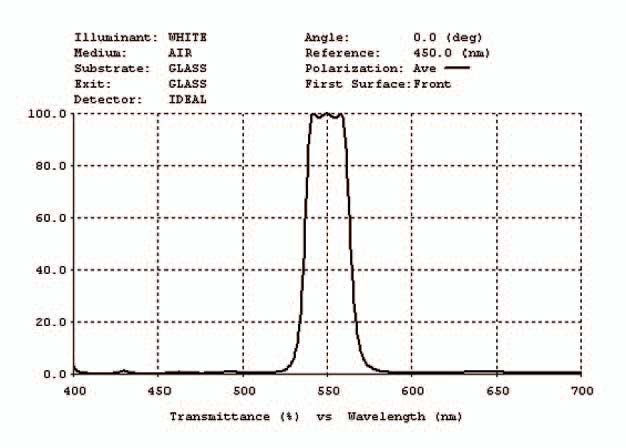

                              400-500nm  T<1%,  550nm T>90%,  590nm-700nm T<1%, AOI=0deg.

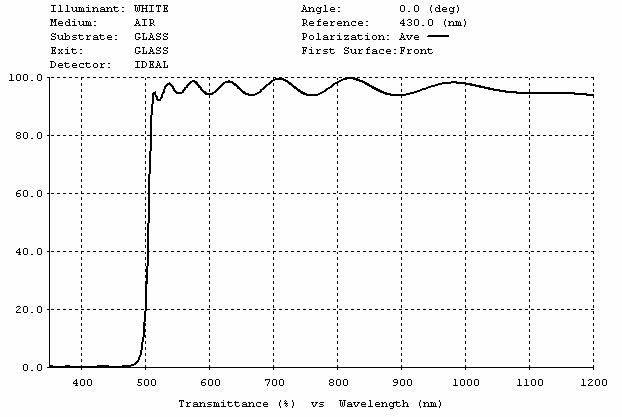

                                      T<1%@200-470nm & T>95%@515-1200nm,  AOI=0deg.

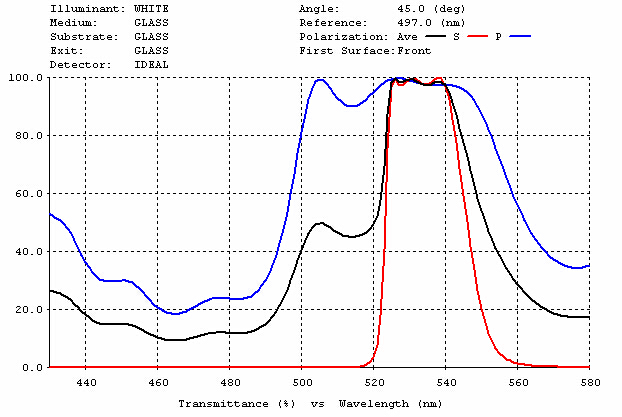

                          T>90%@532+/-5nm (Ts-Tp<5%) & Ravg<80%470+/-20nm, AOI=45deg.

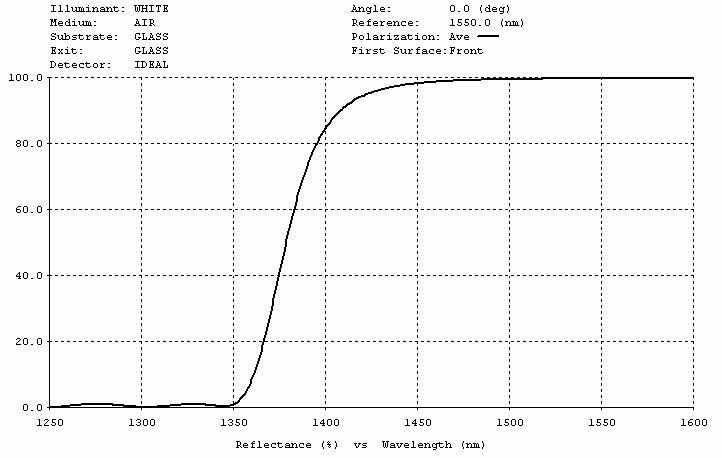

                                     HR R>95%@1550nm & HT T>99.5@1310nm, AOI= 0deg.


Other filter coatings are also available upon request.
